Moon Valley Circuits MV2000 Compressor Stager Window

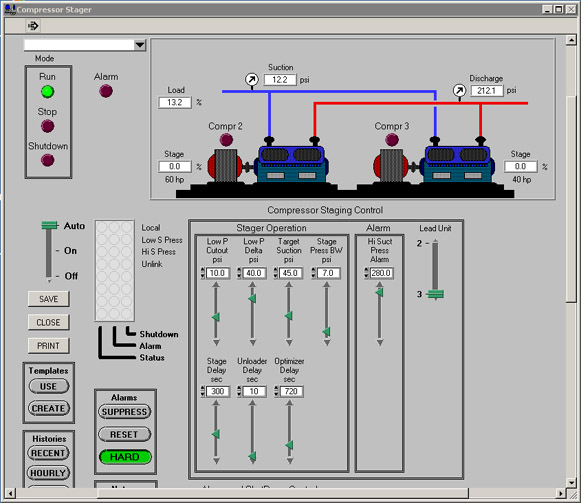

This is the Compressor Stager Window

The Independent Operation controls are gray because this unit is in Auto mode, putting it under control of the Stager.

In this system, only Compressors #2 and #3 are available to the stager. The Stager controls only those units set to 'Auto'. Various combinations of 'Auto' and 'Run' compressor modes are possible. The Stager has an optimizer that will shift load from a partially loaded compressor if a smaller one can carry the load.

The twenty-four small gray circles are the Status, Alarm, and Shutdown indicators. They are red when active. If in Shutdown, the Restart' button will appear. Not shown are the checkboxes used to select which Status conditions trigger Alarm and/or Shutdown.


		Compressor Stager Window


	This is the Compressor Stager Window The Independent Operation controls are gray because this unit is in Auto mode, putting it under control of the Stager. In this system, only Compressors #2 and #3 are available to the stager. The Stager controls only those units set to 'Auto'. Various combinations of 'Auto' and 'Run' compressor modes are possible. The Stager has an optimizer that will shift load from a partially loaded compressor if a smaller one can carry the load. The twenty-four small gray circles are the Status, Alarm, and Shutdown indicators. They are red when active. If in Shutdown, the Restart' button will appear. Not shown are the checkboxes used to select which Status conditions trigger Alarm and/or Shutdown.
