Labeller Controller for OMB 1500 Labeler

MVC designed and built this controller to replace the original, unreliable PLC.

The two large dial potentiometers set the timing for the label application. No keyboarding required.

The processor is the PIC 18F4510.

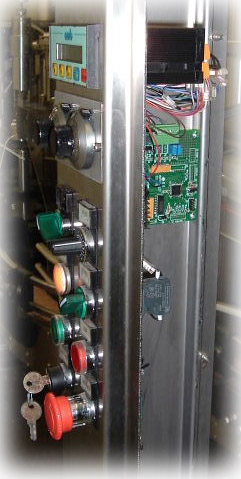

Controller for OMB1500 Labeler
