Moon Valley Circuits MV2000 Glycol Pumps Window

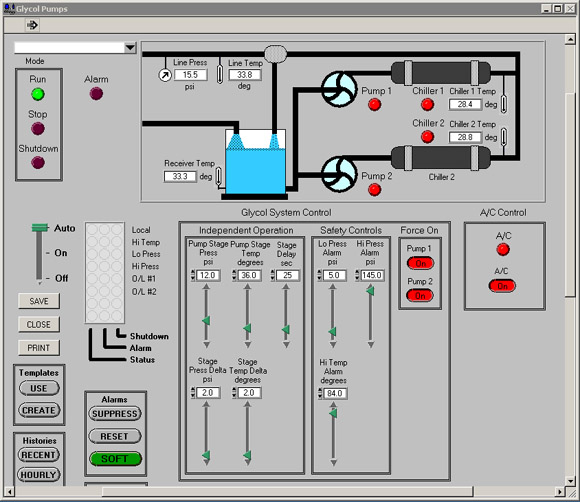

This is the Glycol Pumps Window. It controls the pumps in stages, either by temperature or pressure or both.

The controller signals the demand to the chillers (who have their own windows). The chillers will signal their demand to the stager/compressors, etc.

On the right is a master control for the air conditioning part of the system. This allows the A/C to be easily disabled if necessary.

The twenty-four small gray circles are the Status, Alarm, and Shutdown indicators. They are red when active. If in Shutdown, the 'Restart' button will appear. Not shown are the checkboxes used to select which Status conditions trigger Alarm and/or Shutdown.


		Glycol Pumps Window

	This is the Glycol Pumps Window. It controls the pumps in stages, either by temperature or pressure or both. The controller signals the demand to the chillers (who have their own windows). The chillers will signal their demand to the stager/compressors, etc. On the right is a master control for the air conditioning part of the system. This allows the A/C to be easily disabled if necessary. The twenty-four small gray circles are the Status, Alarm, and Shutdown indicators. They are red when active. If in Shutdown, the 'Restart' button will appear. Not shown are the checkboxes used to select which Status conditions trigger Alarm and/or Shutdown.
