Moon Valley Circuits MV2000 Compressor Window

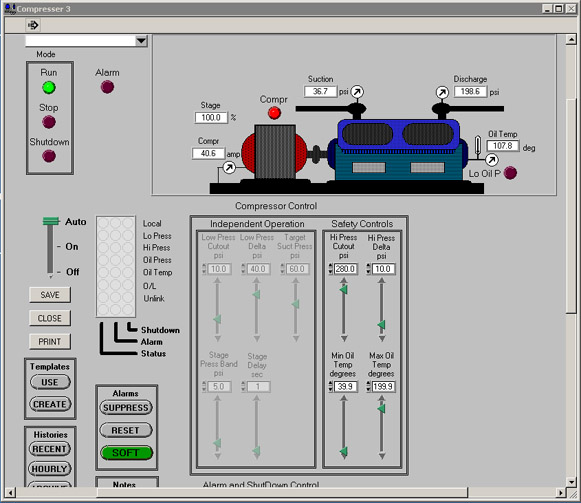

This is the control window for Compressor #3.

The Independent Operation controls are gray because this unit is in Auto mode, putting it under control of the Stager. In 'On' mode, the unit operates stand-alone, with the Independent Operation controls.

The twenty-four small gray circles are the Status, Alarm, and Shutdown indicators. They are red when active. If in Shutdown, the 'Restart' button will appear. Not shown are the checkboxes used to select which Status conditions trigger Alarm and/or Shutdown.


		Compressor Window


	This is the control window for Compressor #3. The Independent Operation controls are gray because this unit is in Auto mode, putting it under control of the Stager. In 'On' mode, the unit operates stand-alone, with the Independent Operation controls. The twenty-four small gray circles are the Status, Alarm, and Shutdown indicators. They are red when active. If in Shutdown, the 'Restart' button will appear. Not shown are the checkboxes used to select which Status conditions trigger Alarm and/or Shutdown.
