Barrel Room Window

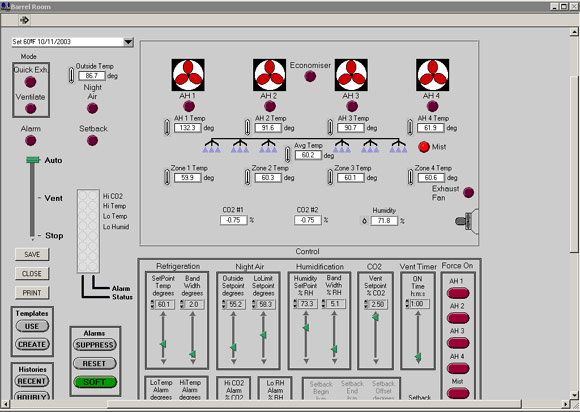

This is a Barrel Room Window

The controller supports Refrigeration, Humidification, night Air cooling, CO2 ventilation, and Manual ventilation.

In this system, four seperate air handlers (AH1-4) serve seperate zones, each with its own temperature sensor.

The sixteen small gray circles are the Status and Alarm indicators. They are red when active. Not shown are the checkboxes used to select which Status conditions trigger Alarms.
